| 公稱型號 | 基本尺寸 | 重量 | 極限轉速 | 基本額定負荷（KN） | 公稱型號 | ||||||

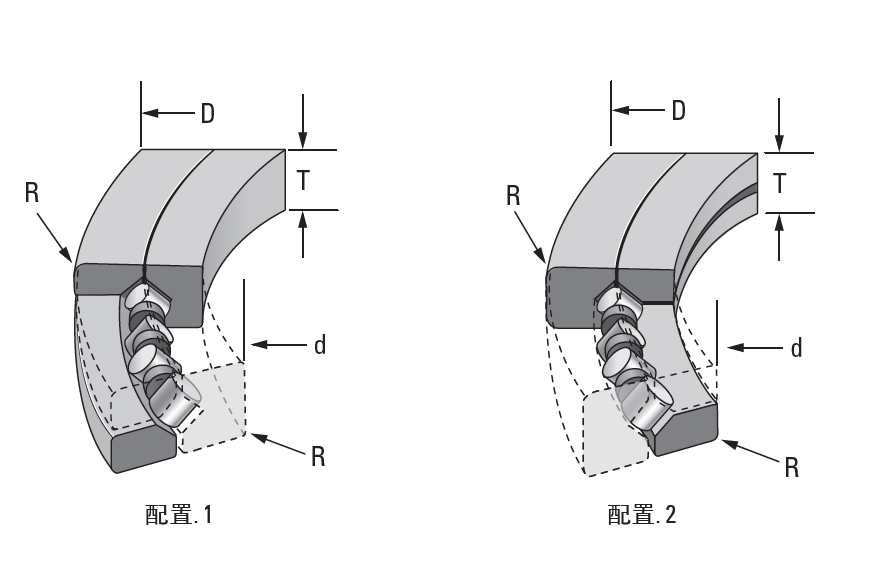

| 內徑 | 外徑 | 高度 | 倒角 | 徑向 r | 軸向 a | ||||||
| d | D | T | r | kg | r/min | 動載荷Cr | 靜載荷Cor | 動載荷Ca | 靜載荷Coa | ||
| JXR637050 | 300 | 400 | 37.0 | 1.5 | 13.0 | 720 | 63.0 | 122.0 | 80.1 | 236.0 | JXR637050 |
| JXR635070 | 300 | 400 | 38 | 1.5 | 13 | 560 | 63.0 | 122.0 | 80.1 | 236.0 | JXR635070 |
| JXR678054 | 300 | 480 | 60 | 1.5 | 38 | 600 | 89.0 | 170.7 | 109.6 | 330.5 | JXR678054 |
| JXR652050 | 310 | 425 | 45.0 | 2.5 | 20.0 | 640 | 82.2 | 162.5 | 102.0 | 303.8 | JXR652050 |
| JXR699050 | 370 | 495 | 50.0 | 3.0 | 30.0 | 600 | 93.6 | 193.0 | 119.0 | 373.0 | JXR699050 |
| XR496051 | 203.2 | 279.4 | 31.75 | 1.5 | 6.5 | 800 | 51.2 | 87.5 | 61.4 | 159.5 | XR496051 |
| XR678052 | 330.2 | 457.2 | 63.5 | 3.3 | 36.2 | 620 | 100.0 | 195.1 | 123.0 | 376.1 | XR678052 |
| XR766051 | 457.2 | 609.6 | 63.5 | 3.3 | 58.0 | 520 | 141.0 | 304.6 | 178.0 | 518.7 | XR766051 |
| XR820060 | 580.0 | 760.0 | 80.0 | 6.4 | 106.0 | 300 | 215.0 | 473.3 | 234.0 | 782.9 | XR820060 |
| XR855053 | 685.8 | 914.4 | 79.375 | 3.3 | 154.0 | 260 | 270.0 | 646.7 | 343.0 | 1238.6 | XR855053 |
| XR882055 | 901.7 | 1117.6 | 82.55 | 3.3 | 204.0 | 200 | 300.0 | 792.3 | 395.0 | 1600.0 | XR882055 |
| XR889058 | 1028.7 | 1327.2 | 114.3 | 3.3 | 408.0 | 160 | 405.0 | 1090.0 | 534.0 | 2163.3 | XR889058 |
| XR897051 | 1879.6 | 2197.1 | 101.6 | 3.3 | 756.0 | 80 | 516.0 | 1662.4 | 698.0 | 3472.0 | XR897051 |
